PE PP precision catheter production line

By mougen
28 Feb 2025
No Comments

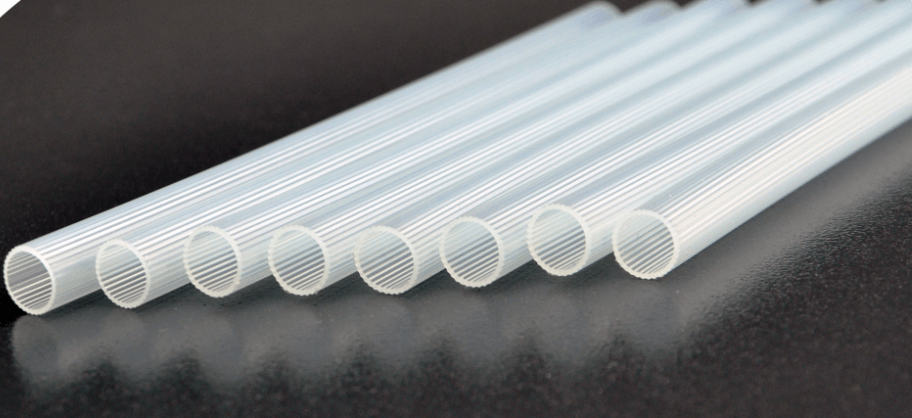

Product application: Suitable for the production of conduits with high precision requirements for outer diameter and wall thickness, such as PE/PP/PA/PS/ABS materials. Ultra high precision with an outer diameter of up to ± 0.02mm, widely used in the medical and automotive industries.

Main features:

1. The host adopts high-strength nitride alloy steel (38crmoala) screw cylinder

Direct coupled transmission; Hard tooth surface, high torque gear reducer; Mitsubishi variable frequency controller, Omron digital intelligent temperature controller; Silent fan and aluminum casting heating temperature control system; Has excellent material plasticizing properties and precise and stable extrusion control;

2. Adopting SUS304 stainless steel vacuum shaping sink, imported stainless steel vacuum pump

dedicated medical grade purified water refrigeration cycle system (patented chiller product), saving water resources and improving product cleanliness. Equipped with a self drying device, the pipe blank dries as soon as it comes out of the water.

3. The tractor adopts high-precision double track traction

the tracks are made of imported PU multi wedge belts, with high precision in traction speed and stable and reliable traction torque;

4．Microcomputer pipe cutting machine with Siemens PLC control system, LCD touch screen human-machine interface system, TECO high-precision low inertia high-speed response servo motor, servo controller cutting system, low inertia aluminum alloy rotating blade arm, high-speed steel cutting tool cutting, ensuring smooth and free of flying wires in the cut

High precision Koyo internal encoder ensures precise cutting length accuracy, and the cutting length can be set arbitrarily. Automatically count and reset the number of cuts.

5. The whole machine adopts high-quality stainless steel outer seal or metal baking paint

the material passing through is imported SUS304 stainless steel material. The structure of the whole machine is easy to clean and comply with the “GMP” requirements for pharmaceutical equipment.

The brand of this product is Jiarui Precision Machinery, and the model is PP-PE Precision Pipe Production Line. The product is also known as PP Pipe Production Line, PE Pipe Production Line, PP Pipe Production Equipment, PE Pipe Production Equipment. The product is used for the production of products with high requirements for outer diameter and thickness avoidance accuracy. The type is a pipe extrusion machine, with a single screw and a screw diameter of 50 (mm) and a large extrusion diameter of 50 (mm). The production capacity is 30 (Kg/h), the positioning accuracy is 0.03 (mm), the external dimensions are 8000X800X1800 (mm), the motor power is 11 (kw), and the after-sales service is a one-year warranty for the whole machine
